- Sheet folding machine

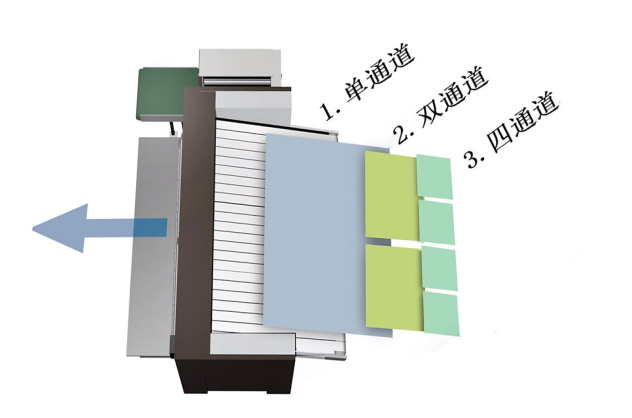

- With folding standard discrimination, protection and alarm, with self diagnosis and automatic management system; Horizontal and vertical folding start control can realize two horizontal and two vertical four channel folding; The key parts of the speed closed-loop and photoelectric detection control system, speed measurement system and transmission system are imported parts; It has the speed control and preparation positioning of the cloth conveying system, and accurately measures and calculates the folding length of the cloth; It can realize process control and directly run online with the ironing machine, which greatly improves the work efficiency and reduces the labor intensity of workers;
characteristic:
1. The electrostatic removing rod with the function of eliminating static electricity can effectively reduce the static electricity on the cloth, reduce the problems such as the curling and wrinkling of the cloth, improve the folding quality, and increase the reliability and stability of the machine
2. The new technology belt turning and electrostatic removal mechanism eliminates the static electricity on the conveyor belt and avoids the adhesion between the linen and the conveyor belt during the folding process
3. Domestic leading folding Technology: the first three folds use air, and the second two folds use guillotine. It not only does not damage the linen, but also improves the folding quality
4. PLC control touch screen operation panel, superior man-machine exchange interface. It has the function of convenient inquiry, analysis and maintenance of various faults
5. The computer controller with full Chinese man-machine dialogue interface adopts large screen liquid crystal display to dynamically display the working state of the folding machine, adopts full digital control frequency conversion dragging system, and can compile 30 automatic folding programs.
Description:

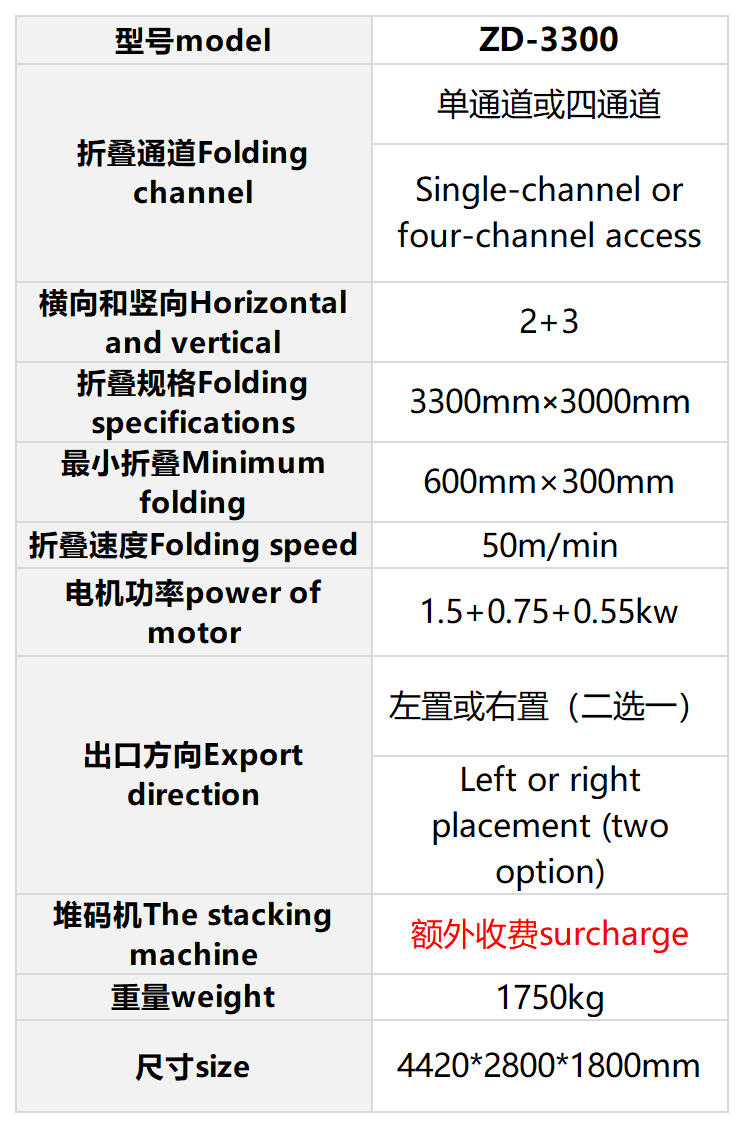

Technical parameter：
